MHG17178 - Borrodale Railway Viaduct Over the Borrodale Burn, Arisaig
Summary
No summary available.
Type and Period (1)
- RAILWAY VIADUCT (Post Medieval to 21st Century - 1560 AD to 2100 AD)
Protected Status
Full Description
NM69NE 8 697 854
For adjacent Borrodale Tunnel, see NM69NE 9.
Borrodale Viaduct [NAT]
OS 1:10,000 map, 1975.

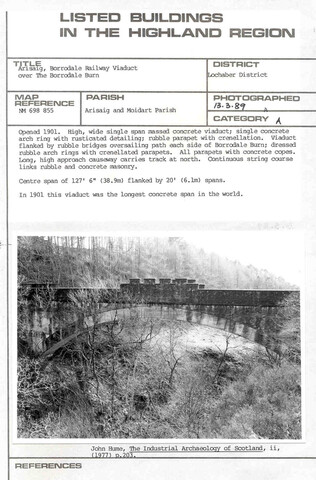

(Location cited as NM 698 855). This 3-span mass concrete viaduct was opened in 1901 by the West Highland Extension Rly, and was, when completed, the longest mass-concrete span in the world. The central span is of 127 ft 6 ins (38.8m) and is flanked by single 20 ft (6.1m) spans.
J R Hume 1977.

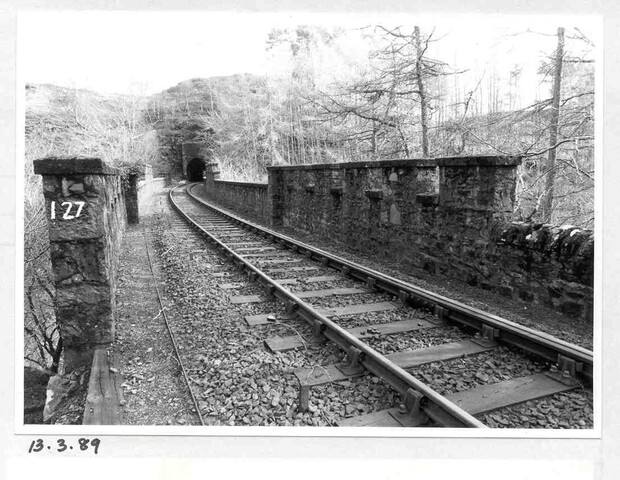

This viaduct was built to carry the West Highland (Extension) railway across the valley of the Borrodale Burn. The line was opened to traffic on 1 April 1901, absorbed into the North British Rly on 31 December 1908, and remains in use.
The design of the bridge was governed by the requirements of the owner of Arisaig House (NM68NE 3). It comprises a single concrete arch of 127 ft 6 ins (38.9m) span and a pair of stone-dressed side spans of 20 ft (6.1m) each. At its completion, it was the longest concrete span in the world.
M Smith 1994.
Sources/Archives (2)
Map
Location
Grid reference | Centred NM 6975 8548 (30m by 30m) (2 map features) |
---|---|
Map sheet | NM68NE |
Civil Parish | ARISAIG AND MOIDART |
Geographical Area | LOCHABER |
Finds (0)
Related Monuments/Buildings (0)
Related Investigations/Events (0)
External Links (2)
- http://portal.historicenvironment.scot/designation/LB302 (Online designation description (Historic Environment Scotland))
- https://canmore.org.uk/site/103345 (View RCAHMS Canmore entry for this site)
