MHG10147 - Helmsdale Bridge
No summary available.
Type and Period (1)
- ARCH BRIDGE (Built, 19th Century - 1809 AD to 1811 AD (between))

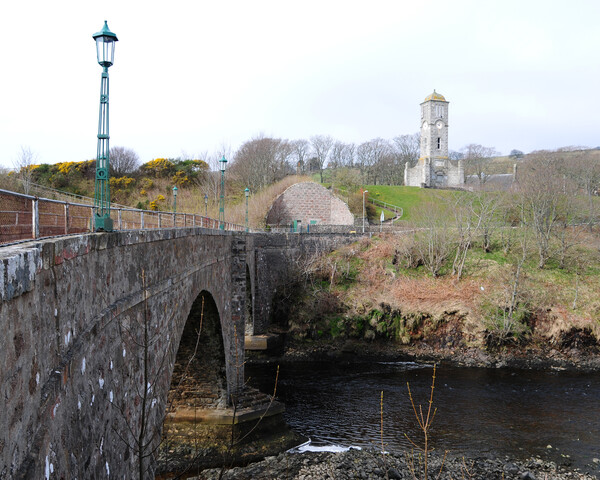

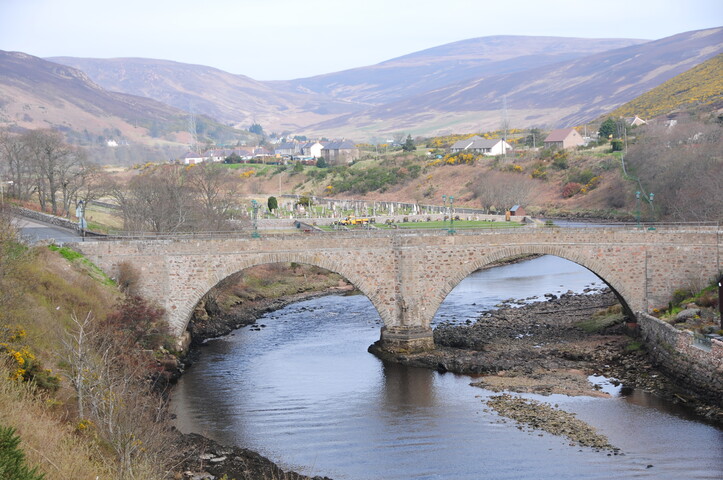

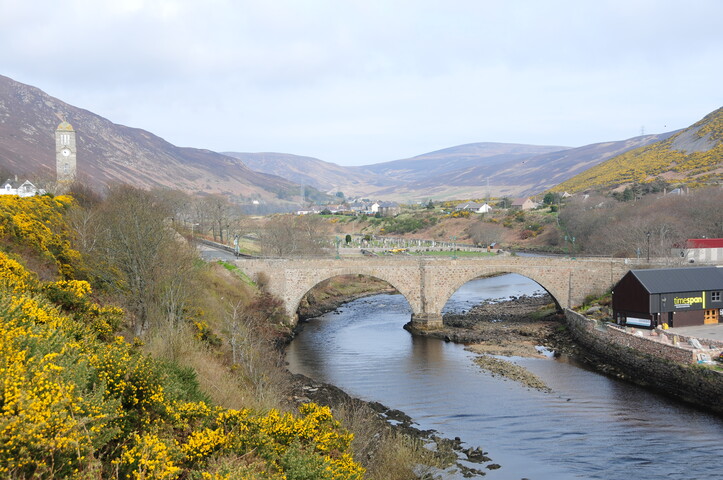

Photo - HAW 11/2002
ND01NW 59 0260 1538.
For (successor and present) Helmsdale, New Bridge (ND 0278 1520), see ND01NW 58.
Helmsdale Bridge [NAT] OS 1:10,560 map, 1964.
The Industrial Archaeology of Sutherland (A Scottish Highland Economy 1700-1900, pp. 42, 43) - Sinclair B Calder, 1974
J Aitken : 19/2/2004
ND026154). Helmsdale Bridge, built 1808-9, engineer Thomas Telford. A masonry bridge with two segmental arches, each of 70ft (21.3m) span, and triangular cutwaters. J R Hume 1977.
ND 026 154). Helmsdale Bridge was built by Telford in 1811 across the River Helmsdale and is a high bridge of coursed rubble, the two segmental spans of 70ft (21.3m) being 25ft (7.6m) above the water. The stepped cutwaters continue up the spandrels as semi-hexagonal pillars. G Nelson 1990.
A little upstream of the New Bridge (ND01NW 58), by Thomas Telford, 1809-11. Two semicircular arches, the pointed cutwaters surmounted by semi-octagonal buttresses which become pedestrian refuges at the parapet. J Gifford 1992
This bridge carries the present line of the A9 public road across the River Helmsdale, to the S of the town of Helmsdale (ND01NW 66). Information from RCAHMS (RJCM), 30 March 1998.
Built by Thomas Telford, 1811. Two wide segmental arches in random rubble. HBD No. 1.
Architect: Thomas Telford (1803-1821)
Sinclair B Calder, 1974, The Industrial Archaeology of Sutherland (A Scottish Highland Economy 1700-1900) (Text/Publication/Volume). SHG364.
Hume, J R, 1977, The industrial archaeology of Scotland 2: The Highlands and Islands, 319 (Text/Publication/Volume). SHG2332.
Nelson, G, 1990, Highland Bridges, 161-2 (Text/Publication/Volume). SHG2572.
Gifford, J, 1992, Highland and Islands, 584 (Text/Publication/Monograph). SHG2247.
- --- Text/Publication/Monograph: Gifford, J. 1992. Highland and Islands. The Buildings of Scotland. Paper (Original). 584.
- --- Text/Publication/Volume: Hume, J R. 1977. The industrial archaeology of Scotland 2: The Highlands and Islands. Paper (Original). 319.
- --- Text/Publication/Volume: Nelson, G. 1990. Highland Bridges. Paperback. 161-2.
- --- Text/Publication/Volume: Sinclair B Calder. 1974. The Industrial Archaeology of Sutherland (A Scottish Highland Economy 1700-1900).
|Grid reference||Centred ND 0258 1538 (50m by 24m) (Buffered by site type)|
Related Monuments/Buildings (0)
Related Investigations/Events (0)
External Links (4)
- http://data.historic-scotland.gov.uk/pls/htmldb/f?p=2200:15:0::::BUILDING:7193 (View listed building information on Historic Scotland's website (old hyperlink))
- http://kweimar.de/Bilder_XML.php?ket=10_13 (View more information on this bridge from a website about Highland Bridges)
- http://portal.historicenvironment.scot/designation/LB7193 (Online designation description (Historic Environment Scotland))
- https://canmore.org.uk/site/7477 (View RCAHMS Canmore entry for this site)
