EHG3191 - Archaeological excavation and watching brief, Cartomie, Edderton
Organisation
Catherine Dagg
Date
January 2010
Loading documents & images
Images (42)
Show captions
Cairn 4. East facing section and linear marks, 4008, on original ground surface. Dark black material in section is interpreted as decayed tree root. From E. © Catherine Dagg. id: 35534

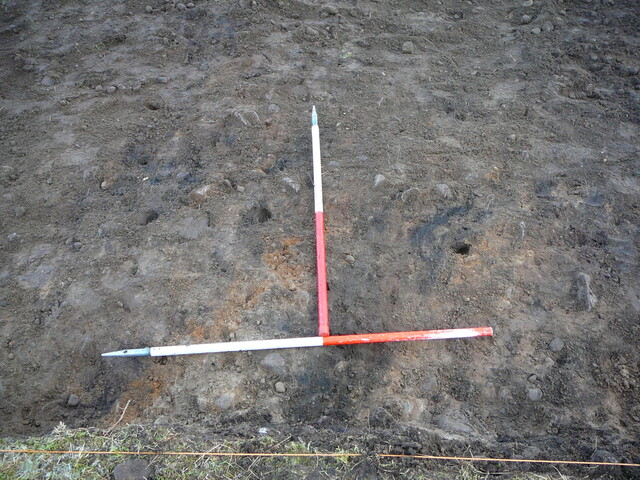

Cairn 4. Linear marks, 4008, exposed after removal of core of mound. From W. © Catherine Dagg. id: 35533

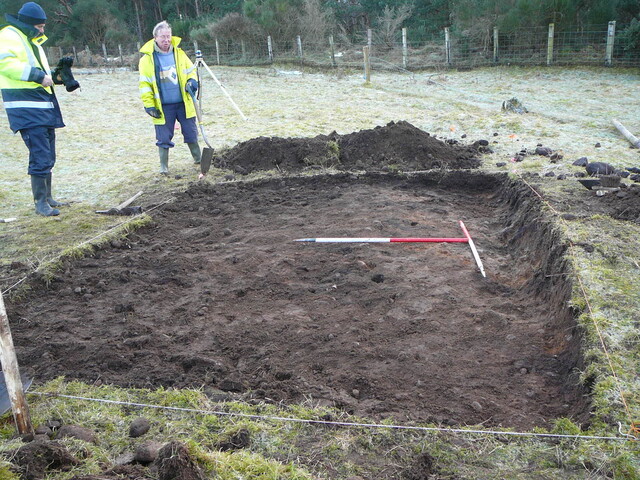

Cairn 4. Original ground surface and north facing section. From N. © Catherine Dagg. id: 35532

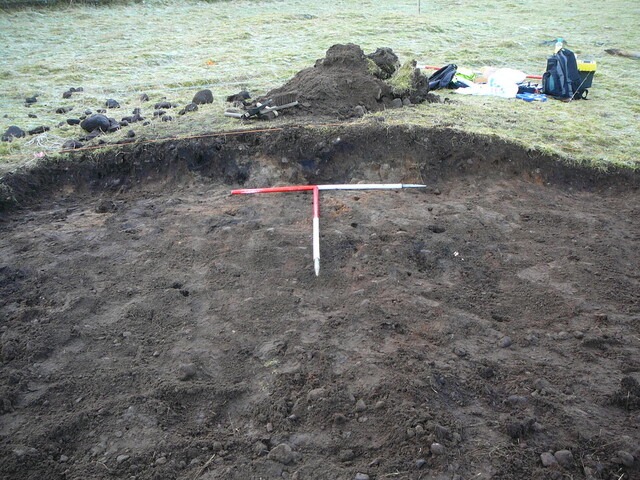

Cairn 4. East facing section and original ground surface. From E. © Catherine Dagg. id: 35531

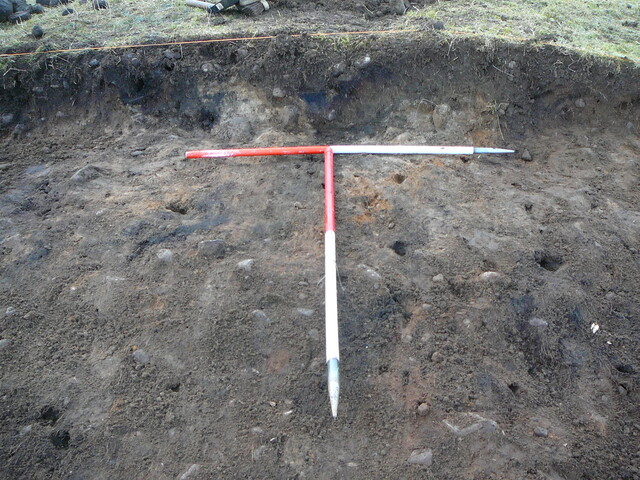

Cairn 4. East facing section, showing pale subsoil core of mound (4004) cut by dark material, interpreted as tree root. From E. © Catherine Dagg. id: 35530

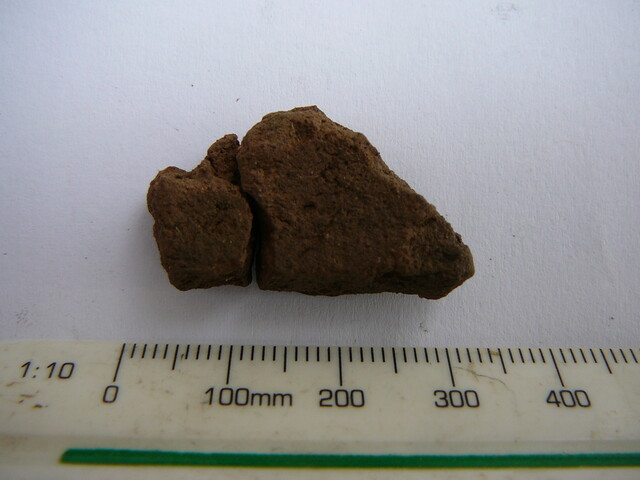

SF4. Pottery fragment, inner face.. . © Catherine Dagg. id: 35529

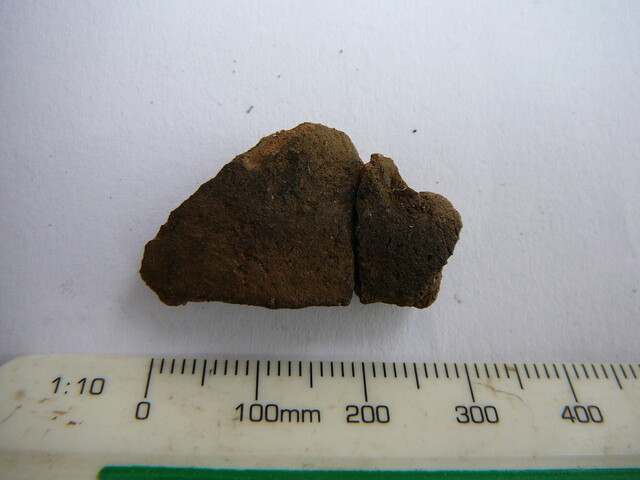

SF4. Pottery fragment, outer face. . © Catherine Dagg. id: 35528

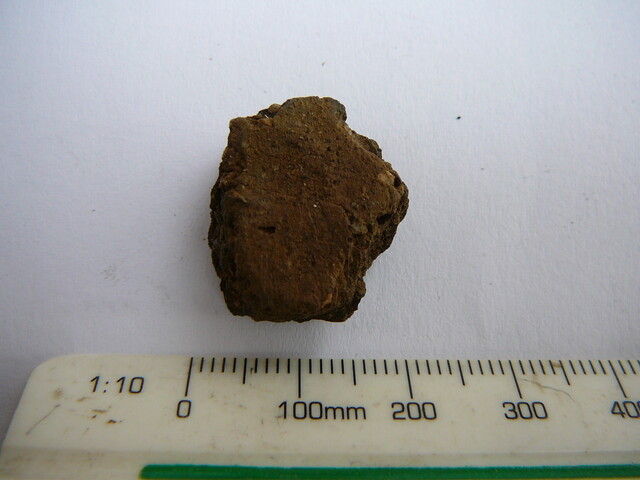

SF6. Pottery fragment, outer face. . © Catherine Dagg. id: 35527

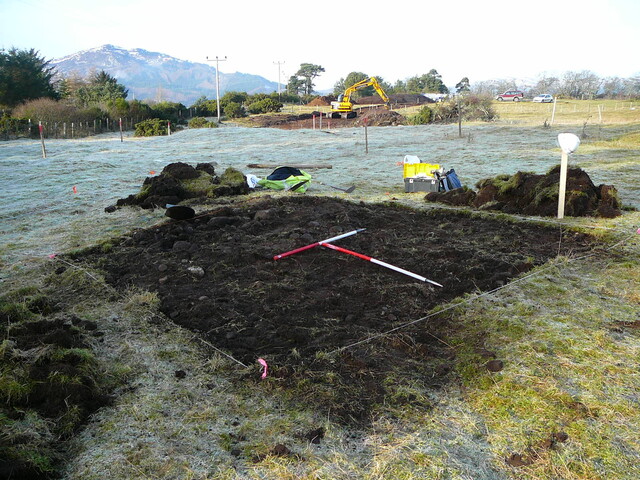

Cairn 4. Trench 4m by 3m after removal of topsoil. From SE. © Catherine Dagg. id: 35526

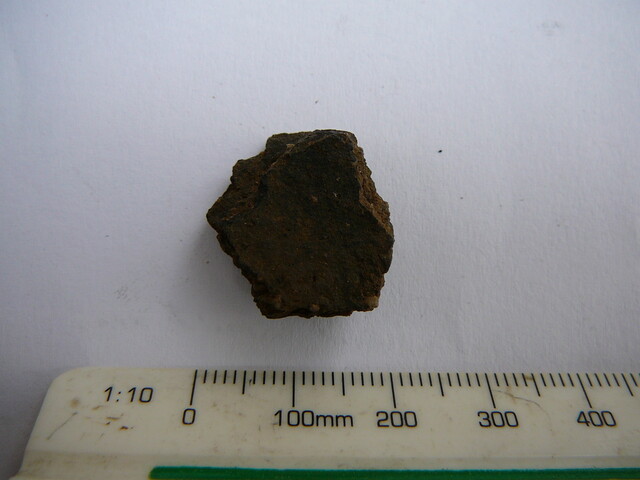

SF6. Pottery fragment, inner face. . © Catherine Dagg. id: 35525

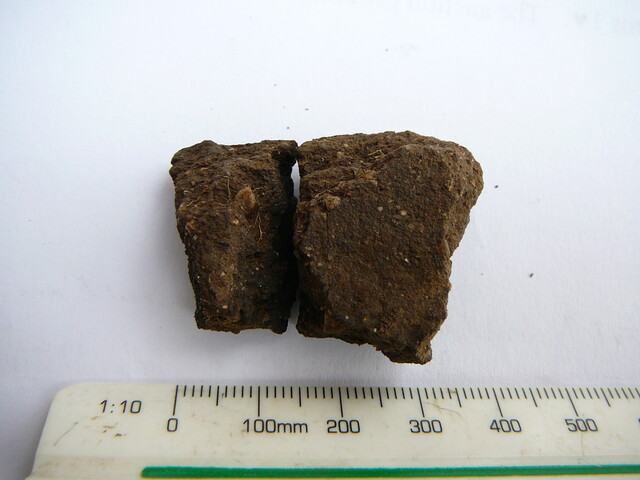

SF2. Pottery, inner face. . © Catherine Dagg. id: 35524

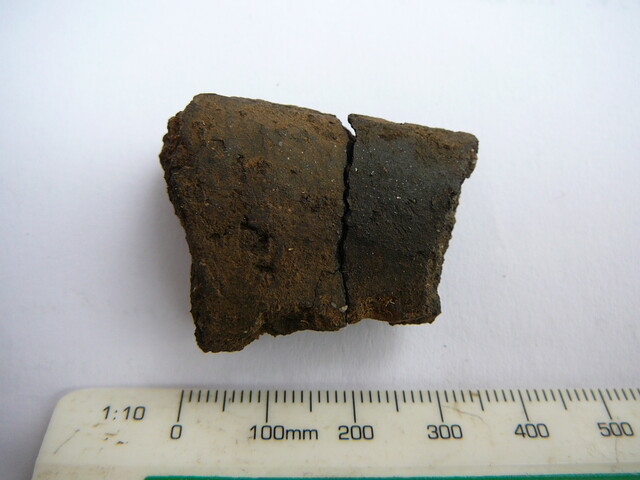

SF 2. Pottery, outer face. . © Catherine Dagg. id: 35523

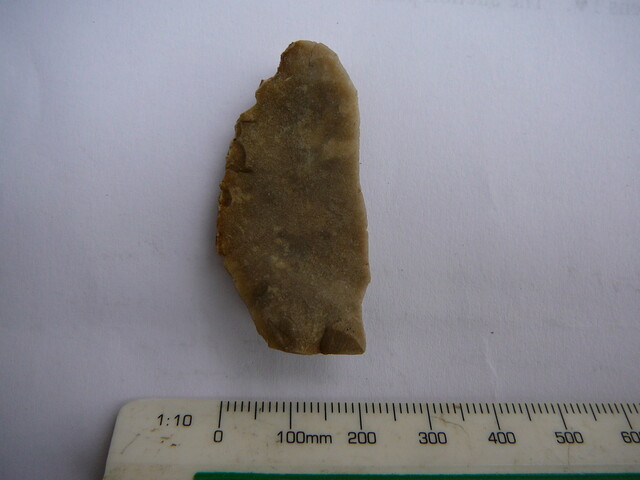

SF5. Flint flake, possible scraper, inner face. . © Catherine Dagg. id: 35522

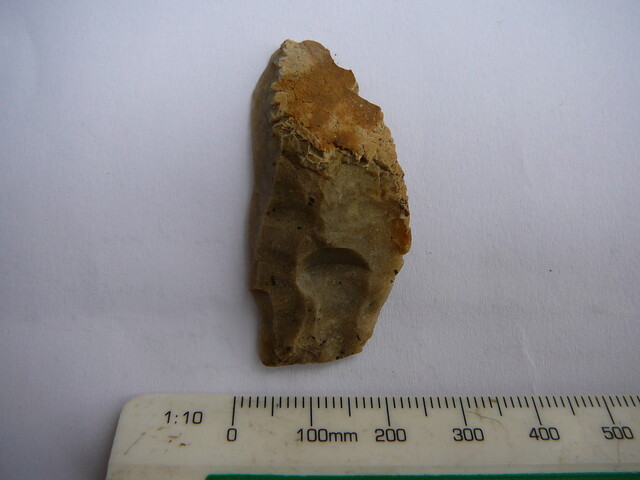

SF5. Flint flake, possible scraper, outer face. . © Catherine Dagg. id: 35521

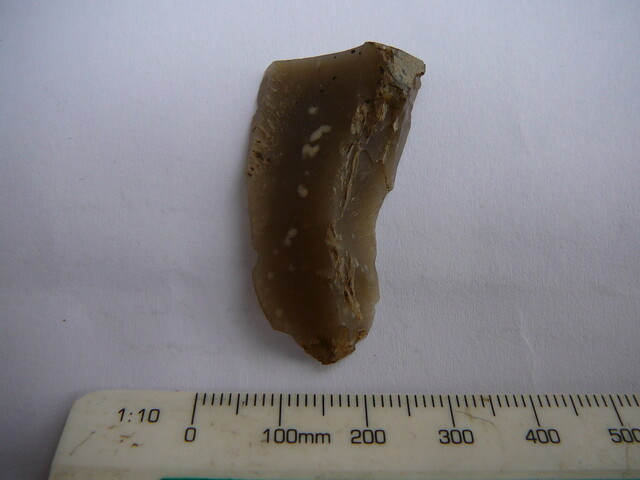

SF3. Flint, fragment of blade or flake. . © Catherine Dagg. id: 35520

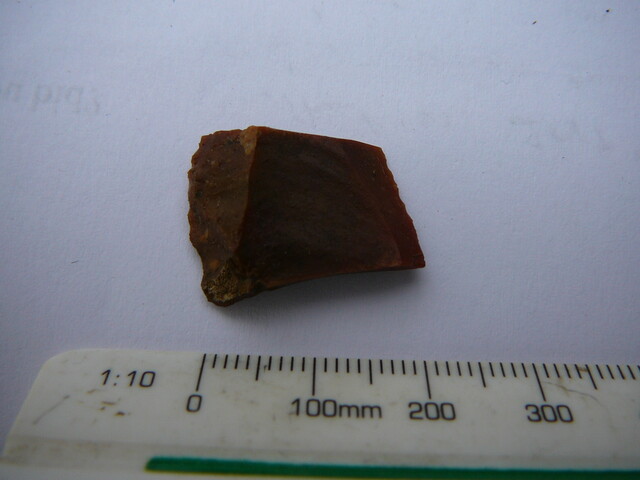

SF 1. Flint, fragment of blade. . © Catherine Dagg. id: 35519
Cairn 10. NE facing section of cairn cut by topsoil removal. From N. © Catherine Dagg. id: 35518

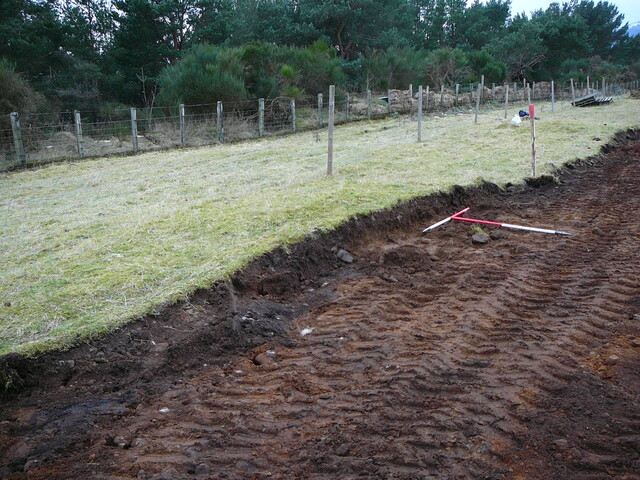

Cairn 10. NE facing section of cairn cut by topsoil removal. From E. © Catherine Dagg. id: 35517

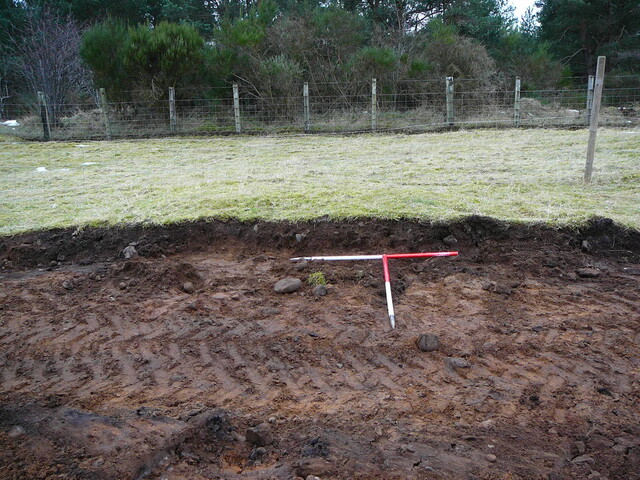

Cairn 10. NE facing section of cairn cut by topsoil removal. From NE. © Catherine Dagg. id: 35516

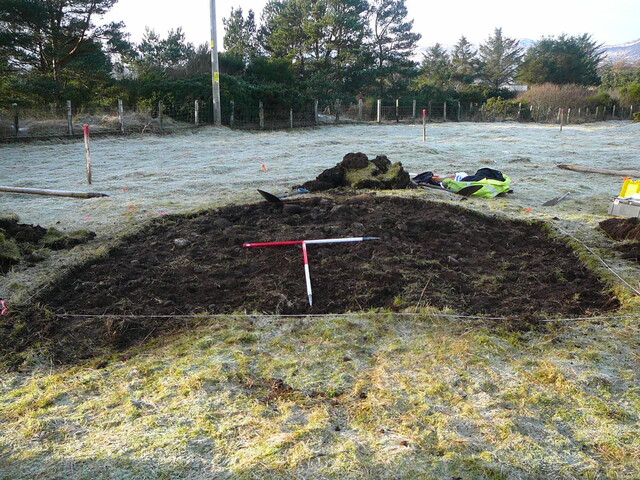

Cairn 4. Trench 4m by 3m after removal of topsoil. From E. © Catherine Dagg. id: 35515

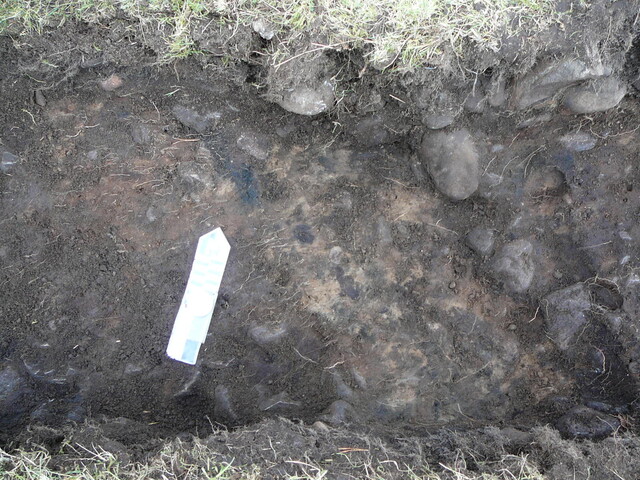

Cairn 6. Linear marks, 6005, aligned 280º, photo taken without flash. From S. © Catherine Dagg. id: 35514

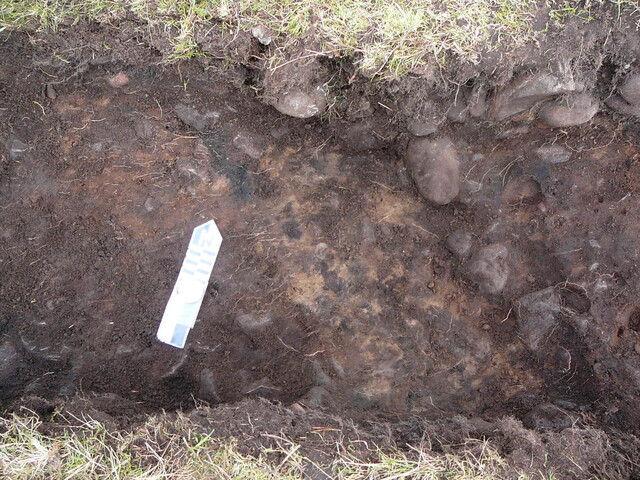

Cairn 6. Linear marks, 6005, aligned 280º, photo taken with flash. From S. © Catherine Dagg. id: 35513

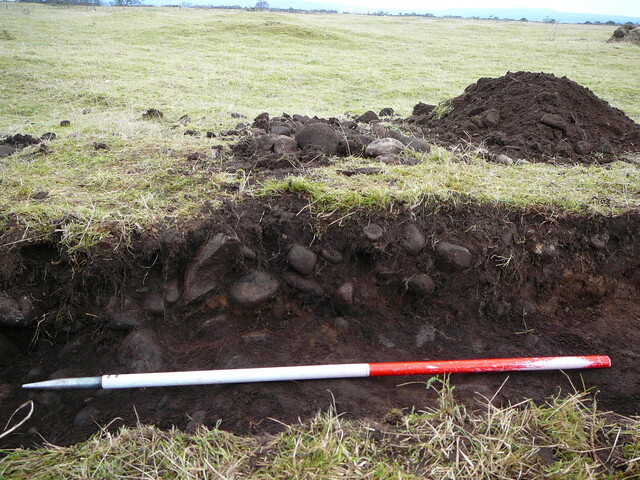

Cairn 6. South facing section, detail of cobble content. From S. © Catherine Dagg. id: 35512

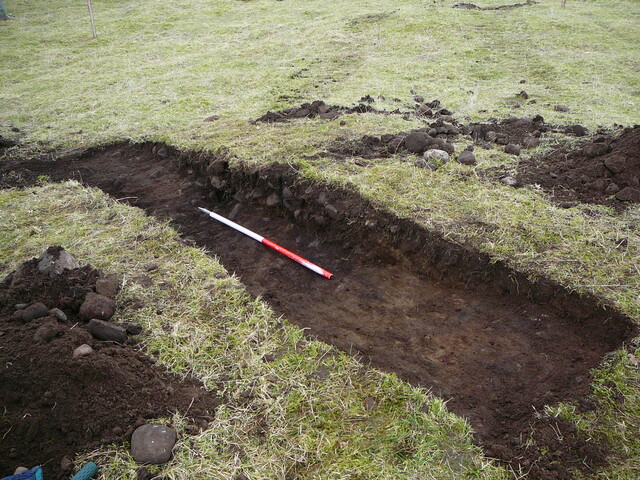

Cairn 6. South facing section showing cobble content to west side of mound. From SE. © Catherine Dagg. id: 35511

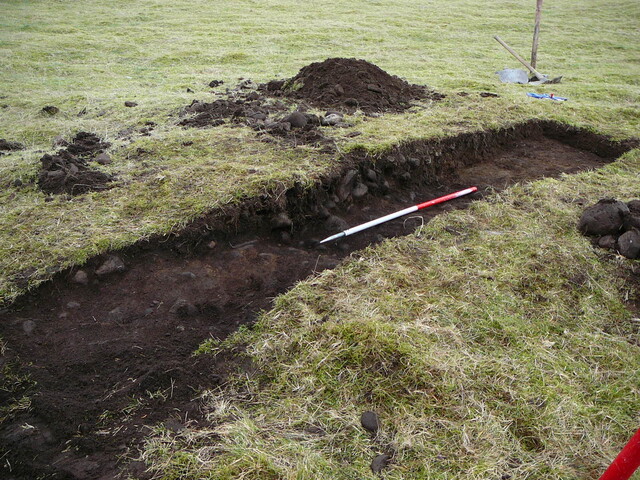

Cairn 6. South facing section showing cobble content to west side of mound. From SW. © Catherine Dagg. id: 35510

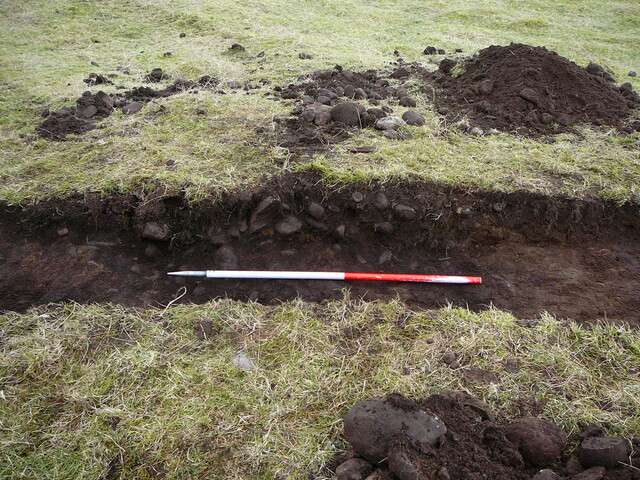

Cairn 6. South facing section showing cobble content to west side of mound. From S. © Catherine Dagg. id: 35509

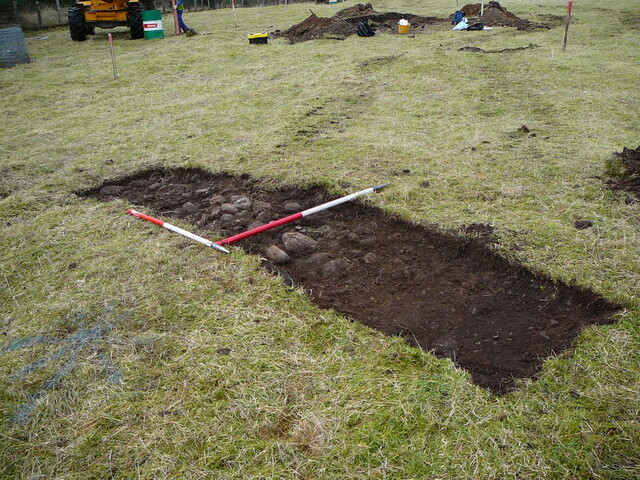

Cairn 6. Ranging pole marks centre line of mound, showing cobble layer to west, absent to East. From SE. © Catherine Dagg. id: 35508

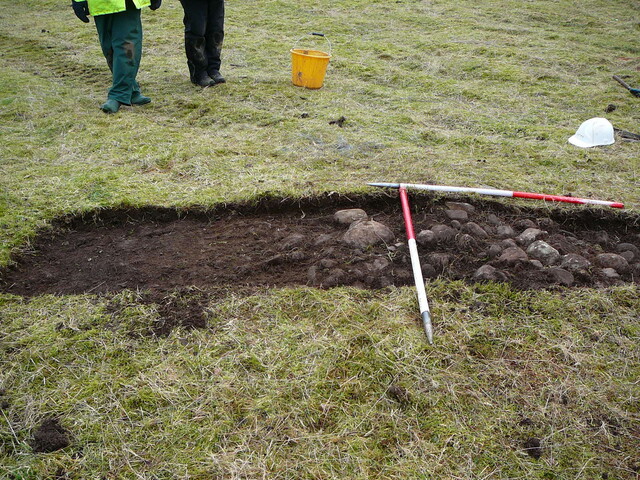

Cairn 6. Ranging pole marks centre line of mound, showing cobble layer to west, absent to East. From N. © Catherine Dagg. id: 35507
Cairn 6. Trench after cleaning down to cobble layer present on west side of mound. From W. © Catherine Dagg. id: 35506

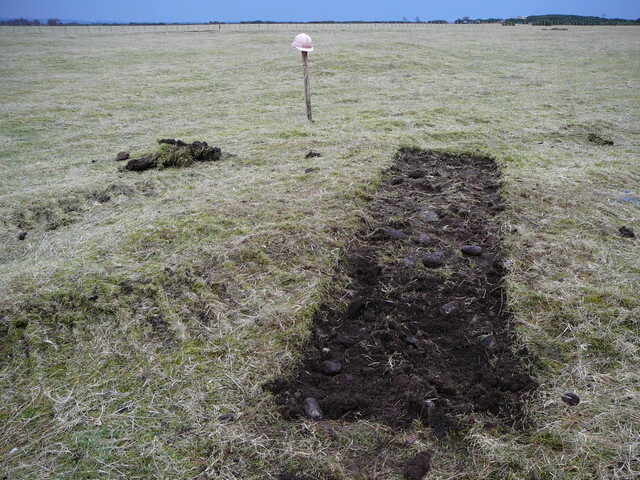

Cairn 6. Trench 0.5m by 2m after topsoil stripping, aligned E-W. From W. © Catherine Dagg. id: 35505

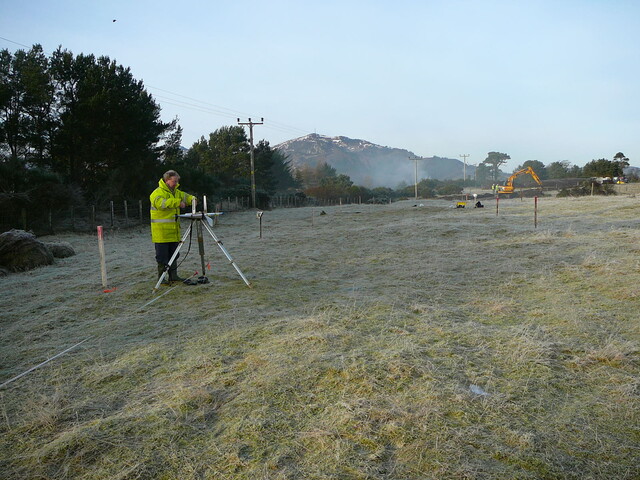

General View. Site with wayleave marked out by red pegs. Plane table is set up on linear bank, cairn 4 is in background with tools, cairn 6 next to near right peg. From SE. © Catherine Dagg. id: 35504

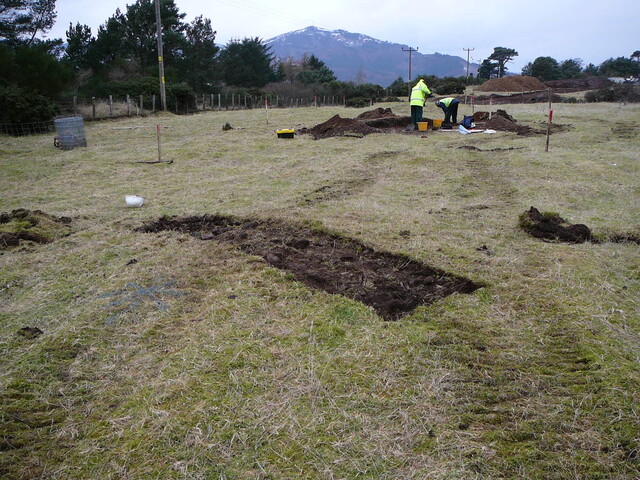

Cairn 6. Trench 0.5m by 2m after topsoil stripping, showing relationship to Cairn 4 in background. From SE. © Catherine Dagg. id: 35503

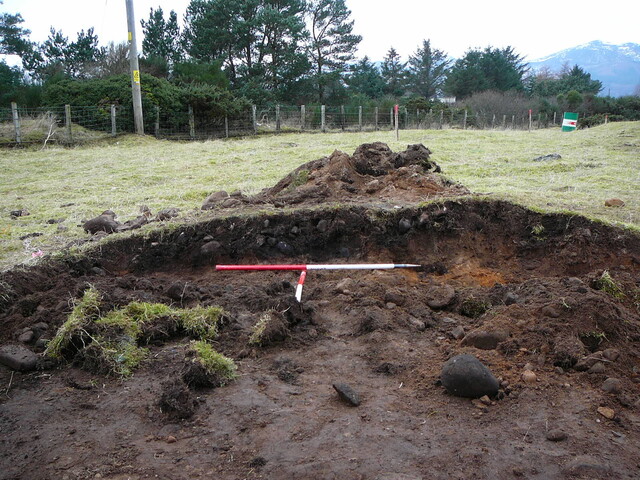

Cairn 4. Trench extended west, new east facing section showing layer of cobbles in topsoil on south side of mound. From E. © Catherine Dagg. id: 35502

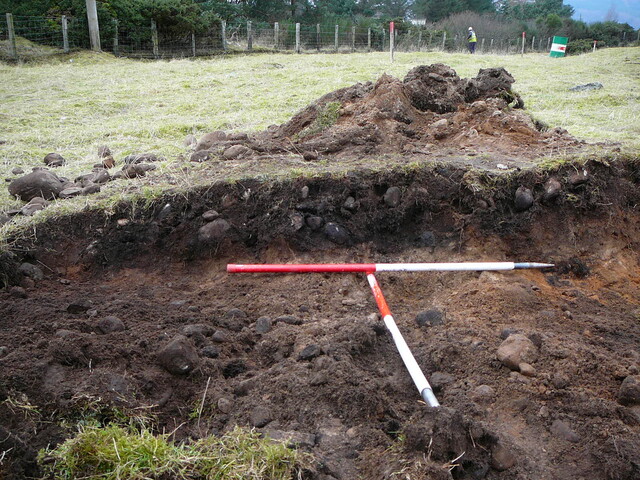

Cairn 4. Trench extended west, new east facing section showing layer of cobbles in topsoil on south side of mound. From SE. © Catherine Dagg. id: 35501

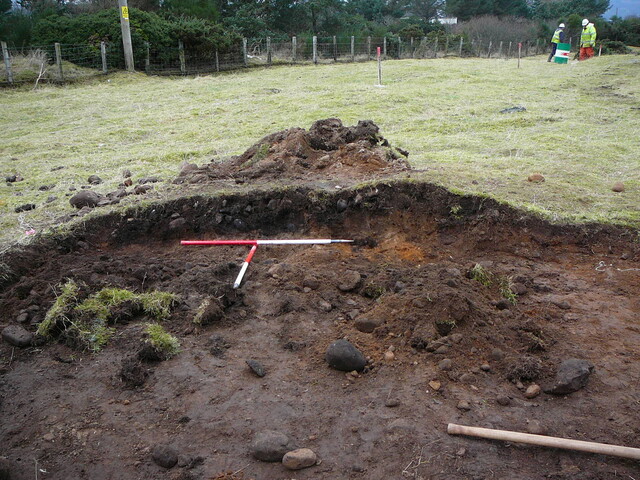

Cairn 4. Trench extended west, new east facing section showing layer of cobbles in topsoil on south side of mound. From NE. © Catherine Dagg. id: 35500

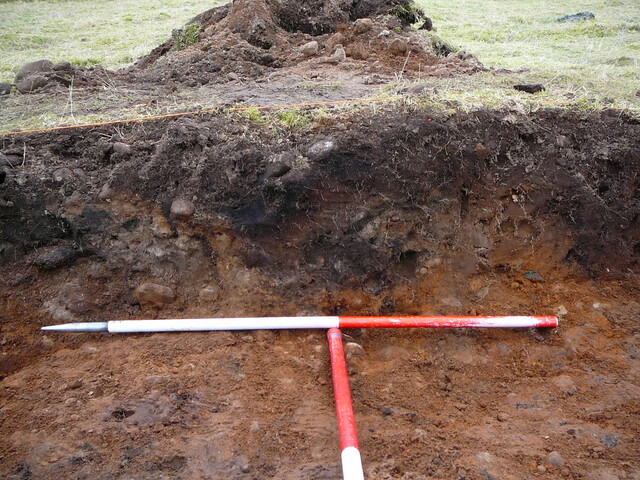

Cairn 4. Trench extended W by 500mm, east facing section, central section. From E. © Catherine Dagg. id: 35499

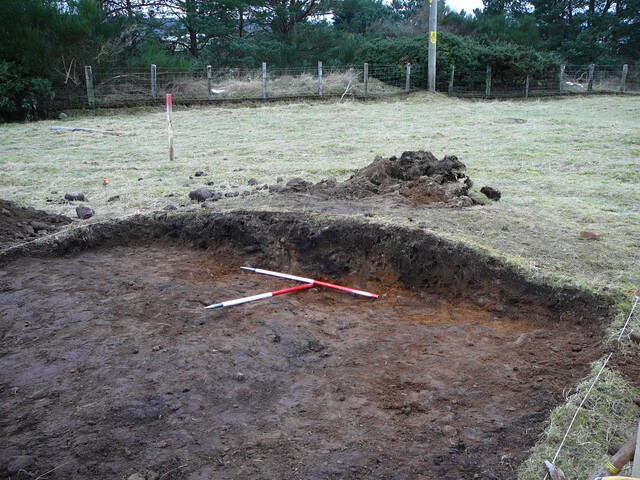

Cairn 4. Cairn or mound after east half removed. From NE. © Catherine Dagg. id: 35498

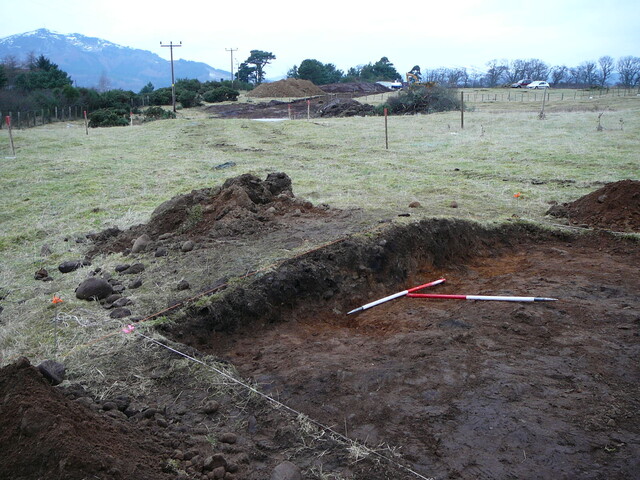

Cairn 4. Cairn or mound after east half removed. From SE. © Catherine Dagg. id: 35497

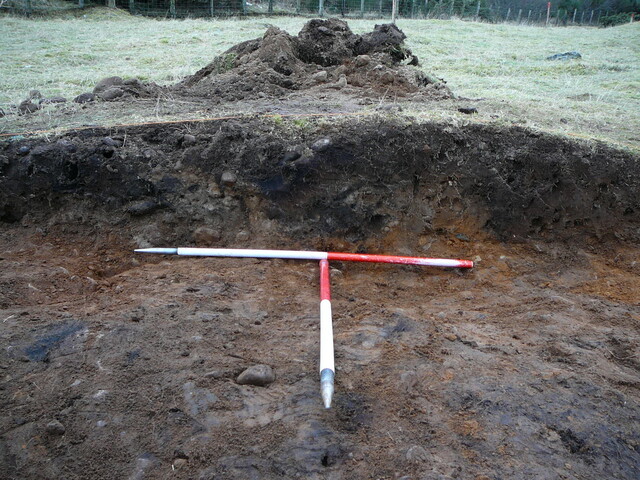

Cairn 4. East facing section, pale subsoil of mound core flanking dark material of decayed tree root. From E. © Catherine Dagg. id: 35496

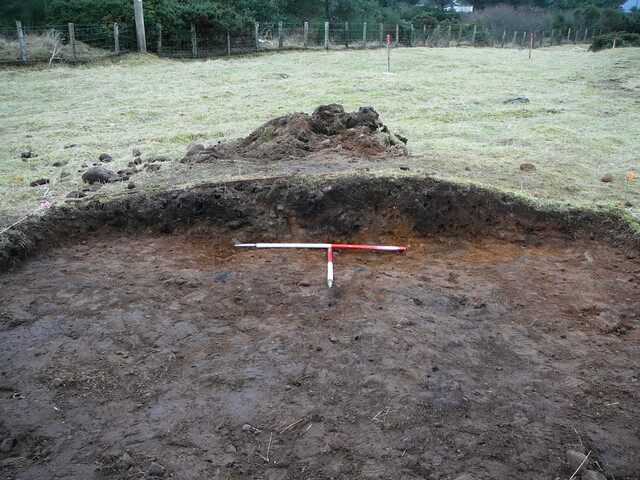

Cairn 4. East facing section and linear marks removed to expose natural subsoil surface. From E. © Catherine Dagg. id: 35495

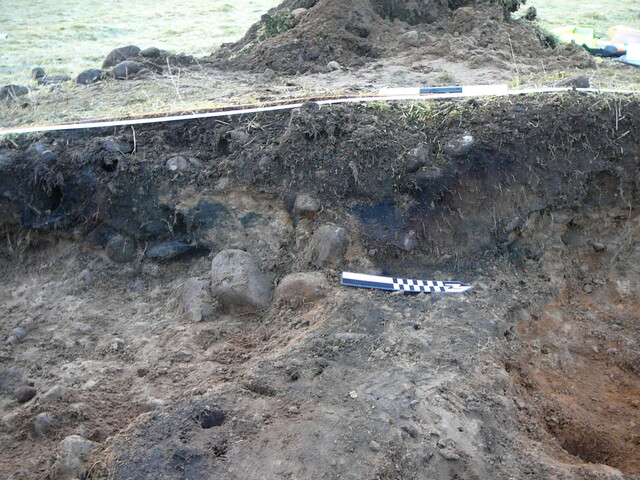

Cairn 4. Partial removal of linear marks, 4008, to reveal underlying natural subsoil surface 4009. From E. © Catherine Dagg. id: 35494

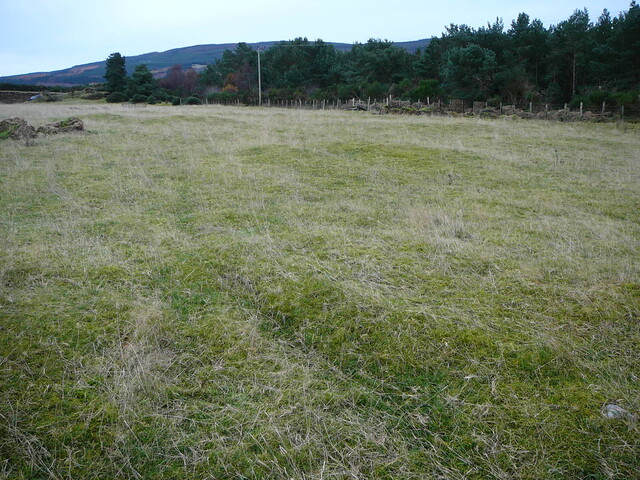

General view. Site before marking out of wayleave. This runs parallel to the fence in the background, through the furthest visible mounds. From N. © Catherine Dagg. id: 35493
Documents (1)
Show captions
Fieldwork report © Catherine Dagg. id: 118356 (click to open this file in a new window)
Description
Ten cairns, forming the SW part of a larger cairnfield were recorded and investigated in advance of a new access road. Before any ground-breaking work was carried out, a plan of the site was made, using a plane table, at 1:100. Three of the cairns were entirely within the wayleave whilst the other seven would be cut across by topsoil stripping. Two low-spread linear banks were also noted to cross the wayleave. Two of the cairns (Cairns 4 and 6) were partially excavated. The works were then allowed to continue and a watching brief was maintained during the removal of the remainder of these two cairns and during topsoil stripping over another seven as well as the linear banks. One cairn (Cairn 1) was removed entirely by means of mechanical excavation under archaeological supervision. The cairns proved to consist of mounded subsoil, with a superficial overburden of cobbles possibly representing later field clearance, and overlay a former ground surface from which flints and coarse pottery were recovered. No human remains were encountered. <1>
Map
Clear selection Please click on the map to select a feature
The map is limited to 3000 records per layer so not all records are being displayed for this area. Zoom in to see more.
Location
Location
Land north of Woodlands House, Edderton
Grid reference
Centred NH 71036 85273 (132m by 89m) (2 map features)
Map sheet
NH78NW
Geographical Area
SUTHERLAND
Operational Area
CAITHNESS SUTHERLAND AND EASTER ROSS
Related Monuments/Buildings (1)
MHG8590 Cairnfield - Cartomie Wood (Monument)
